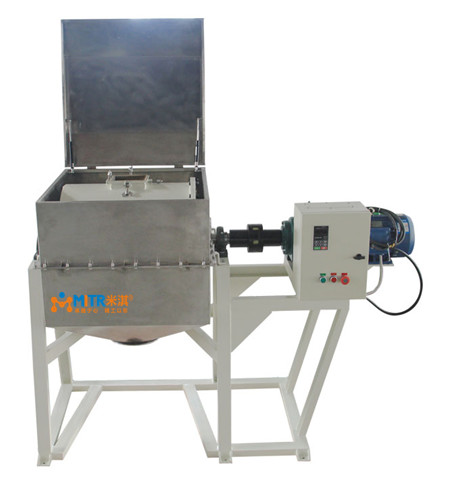

Light Horizontal Ball Mill Wqm-300 Sus304 Stainless Steel Lining
A. Introduction
It is ultrafine grinding and mixing equipment for laboratory and small batch production. With tight structure, high efficiency and particle uniformity, it is priority selection for science research, teaching, experiment and production, widely using in electronic material, magnetic material, bio-medicine, ceramic glaze, nonmetallic mine, new material and so on. Dry milling. With discharge device, easy to separate ball and particle.
B. Lining material option and volume range
1.alumina/high purified alumina(20-1000L)
2. stainless steel (20-1000L)
3. carbon steel(20-1000L)
4. nylon (20-60L)
5. PU(20-500L)
6. PTFE(20L-500L)
C. Feeding granularity range
General mineral＜3mm, brittle material＜10mm
D. Discharge particle range
44μm in general according to material hardness and milling time.
E. Using condition
A traditional ball mill, majorly used in primary grinding and mixing. The main theory is that ball and material moving in a same direction are dropping from the top to break the material into powder.
| Model |
Volume |
Speed |
Power(KW) |
Feeding granularity volume |
Ball volume |
Feeding entry |
Jar size |
| WQMG-10 |
10L |
0-56r/min |
0.55 |
4L |
3L |
ø110 |
Ф230χ240 |
| WQMG-20 |
20L |
0-50r/min |
0.55 |
8L |
7L |
ø120 |
Ф290χ300 |
| WQMG-30 |
30L |
0-47r/min |
0.75 |
10L |
9L |
ø130 |
Ф340χ350 |
| WQMG-50 |
50L |
0-45r/min |
0.75 |
20L |
19L |
ø140 |
Ф380χ400 |
| WQMG-70 |
70L |
0-41r/min |
1.1 |
28L |
21L |
ø150 |
Ф440χ460 |
| WQMG-100 |
100L |
0-38r/min |
1.5 |
40L |
30L |
ø 160 |
Ф500χ520 |
| WQMG-200 |
200L |
0-35r/min |
2.2 |
80L |
60L |
ø 165 |
Ф630χ650 |
| WQMG-300 |
300L |
0-31r/min |
3 |
120L |
90L |
ø 219 |
Ф720χ750 |
| WQMG-500 |
500L |
0-28r/min |
4 |
200L |
150L |
ø 219 |
Ф870χ870 |
| WQMG-1000 |
1000L |
0-26r/min |
7.5 |
400L |
300L |
ø 273 |
Ф1070χ1100 |
