Battery Stainless Steel Vacuum Glove Box Laboratory / Vacuum Chamber
Main Features
1. Two transition boxes is unique design in the market. It guarantee the working environment in the studio,save protection atmosphere and operating time
2. The entire cabinet is made of stainless steel,and corrosion resistant and easy to clean,no pollution.
3. The visual window is wide,clear and bright.
4. There is a porous electrical socket in the glove box,which is convenient to scientific experiments
5. Can be equipped with electric furnace in the box for partial heating.
6. Operating gloves are reliable and sealed with thick latex gloves;
Main Application
1. In cooperation with scientific research units in the experimental work of low-energy radioactive substances,aseptic operation of microorganism inoculation and chemical qualitative and quantitative analysis and other closed isolation operations can be carried out in the operation box.
2. It need to in a protective atmosphere for processing used in biochemical, metallurgical, electronic, chemical, geological, mineral, medicine, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials and so on
3. It is the ideal device for institutions of higher learning, research institutes,enterprises laboratory to carry out scientific experiments.
Catalog and Technical Parameter:
 Model | Specification(mm)L×D×H | Dimension of transition room(mm) | Dimension of smaller transition room(mm) | Rack | Glove round door diameter | Weight (kg) | Stainless steel thickness | Tray in the transition room |
 MT-STX1 | 600*450*500 | Φ200*270 | no | no | Φ145mm | 120 | 6mm | no |
 MT-STX2 | 800*600*700 | Φ280*350 | no | One | Φ200mm | 230 | 6mm | no |
 MT-STX3 | 1200*700*900 | Φ340*400 | Φ120*160 | One | Φ200mm | 330 | 6mm | yes |
  Model | Vacuum value | Power | Lamp | Valve configure | Dimension of | weight | Gas |
 MT-STX1 | -0.1Mpa | 10A 220V | One | Two admission valve Two outlet valve | 60*30 | 130kg | Ar
He
Ni
purity 99.99％ |
  MT-STX2 | 75*40 | 230kg |
 MT-STX3 | 120*50 | 350kg
|
Company Information
Changsha Mitrcn Instrument Equipment Co., Ltd. specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
Product Tags:
|
|

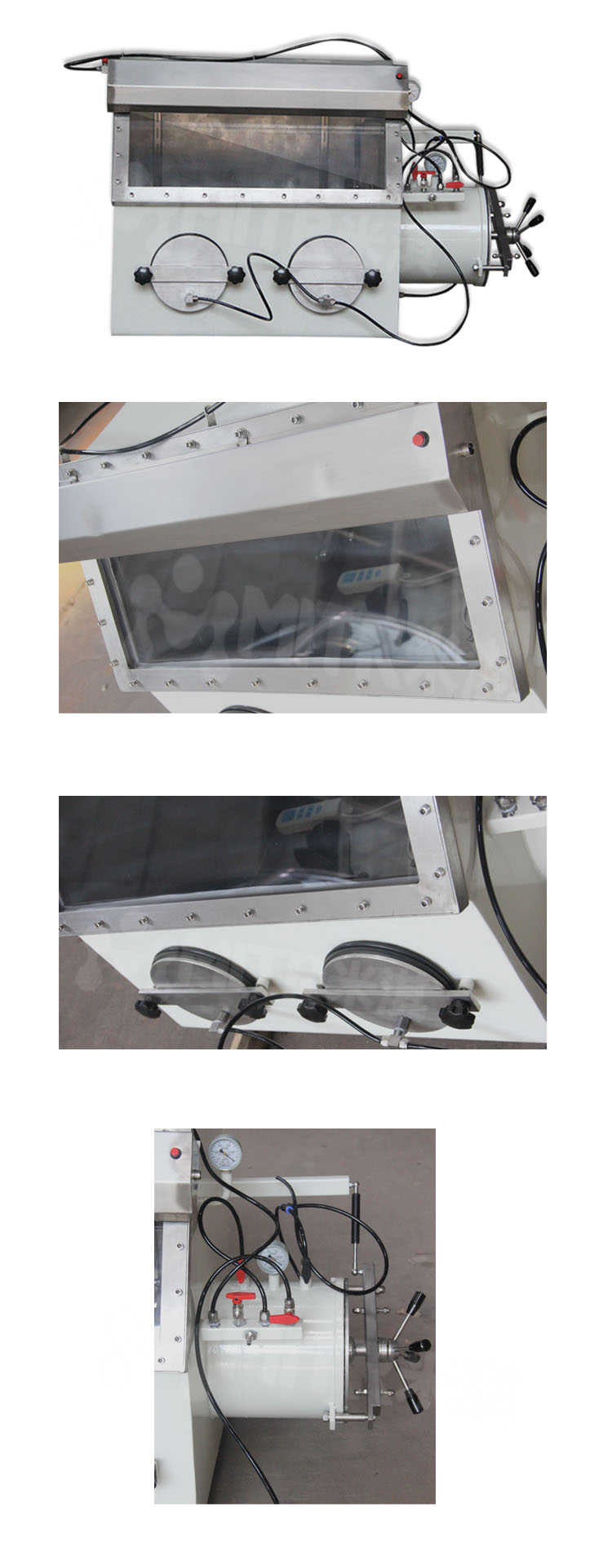

Battery Stainless Steel Vacuum Glove Box Laboratory / Vacuum Chamber Images
|
